Filtration Variants

We design and build Storm Clean® storm filter system variants to meet the unique specifications of your site. Storm filtration designs include wall mount and inlet configurations. We work with you to determine the best configuration to address pollutants of concern and help you achieve your water quality goals.

FEATURES

  • Storm filter systems are easy installed by one person

  • Custom storm drain designs fit your site requirements

  • Easy maintenance with a vactor truck or manually

  • Easy access sample port for water quality compliance testing


BENEFITS

  • High efficiency with effective filtration options to help achieve regulatory compliance

  • Works well in extensive water treatment applications including stormwater runoff, wastewater and process water effluent and metals removal

  • As your site needs change, or to enhance treatment, you can increase pollutant removal performance by easily changing out filter elements


APPLICATIONS

  • Stormwater, wastewater and process water effluent

  • Metals removal applications

  • When standard sizes won't work

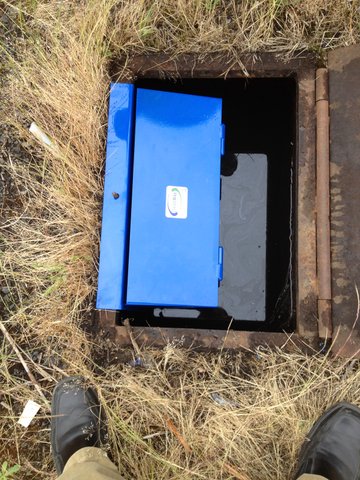

  • Storm Clean® wall mount filtration units work best in large basins or in manholes with 12" - 20" outlets deep in the vault

HOW VARIANT FILTRATION SYSTEMS WORK

  • The rigid strainer is constructed of a perforated material with surface area that accommodates flows rated at 125% of the pre-installed flow.

  • The absorption media section incorporates a flexible open mesh fabric envelope with our specialized media blend. This envelope is suspended from the support assembly and fitted into the basin so influent passes through it before exiting the filtration unit and entering the downstream conduit.

  • The combination of gross solids removal via the strainer and the absorption / filtration of the media section effectively reduce turbidity, suspended solids and other targeted pollutants.
